GTC WIRING DIAGRAMS


Wiring Highlights:

3 single coil wiring : the "Mega Strat" revision 4. This wiring allows you to get tones similar to humbucking pickups, as well as single coil combinations not normally available. You even get thin, pawn shop guitar tones! All done without permanently altering your guitar.   A GUITAR TECH CRAIG FAVORITE.

3 single coil wiring : Brian May's Red Special? A hint taken from a review of a new signature guitar prompted me to see how his original guitar is wired. I'm pretty positive that this is it.

3 single coil wiring : "Strat Lover's": Typical stock wiring but the flip of a push/pull or mini-toggle switch adds Rhythm/Lead and Rhythm/Middle/Lead combinations.

2 humbucker wiring: the "Humbucker Lover's":  This wiring uses a 5-way switch, includes both humbuckers individually and adds tones using coils from both pickups to create other humbucker-style tones.

The following diagrams are shown as wiring diagrams rather than schematics for the benefit of the novice. Currently, 5-way switches shown are AFTER-MARKET switches and differ from many Manufacturers' Original Equipment. If you have difficulty adapting the diagram to your switch, CONTACT ME For Details.
NOTE:  Some diagrams do not show volume and tone controls.  ALL of the diagrams below may be adapted to any volume and tone control arrangement.  It is important to understand the concept of the volume and tone controls to adapt some of these diagrams to your guitar.  If the diagram you wish to use does not show volume and tone controls, use another diagram as reference and see just how these controls work.  It shouldn't be too difficult, and once you see how these controls are wired, you can easily add them to any diagram.
Original content on this site may be used for personal purposes under Creative Commons
Attribution-NonCommercial-ShareAlike 4.0 International licensing. Commercial licensing is available.
Please contact GTC for details.
Creative Commons
CUSTOM WIRING DIAGRAM INDEX
     (click the Tone Control in the VIEW IT column to display the Diagram)

  2 HUMBUCKING PICKUPS
DESCRIPTION VIEW IT MORE INFO
2 Vol, 2 Tone, 3-Way Selector Switch VIEW DIAGRAM --
1 Vol, 2 Tone, 3-Way Selector Switch VIEW DIAGRAM --
2 Vol, 1 Tone, 3-Way Selector Switch,Phase Switch, 2 Coil Tap Switches VIEW DIAGRAM --
2 Vol, 1 Tone, 3-Way Selector Switch VIEW DIAGRAM --
1 Vol, 1 Tone, 3-Way Selector Switch, 1 Master Coil Tap Switch VIEW DIAGRAM --
2 Vol, 1 Tone, Import 3-Way Selector Switch VIEW DIAGRAM --
2 Vol, 1 Tone, Import 3-Way Selector Switch VIEW DIAGRAM --
"Humbucker Lover's" 2 Humbuckers, 5-Way Selector Switch * ERROR In Diagram * VIEW DIAGRAM --
*New* "Humbucker Lover's II" 2 Humbuckers, 5-Way Selector "Super" Switch VIEW DIAGRAM --

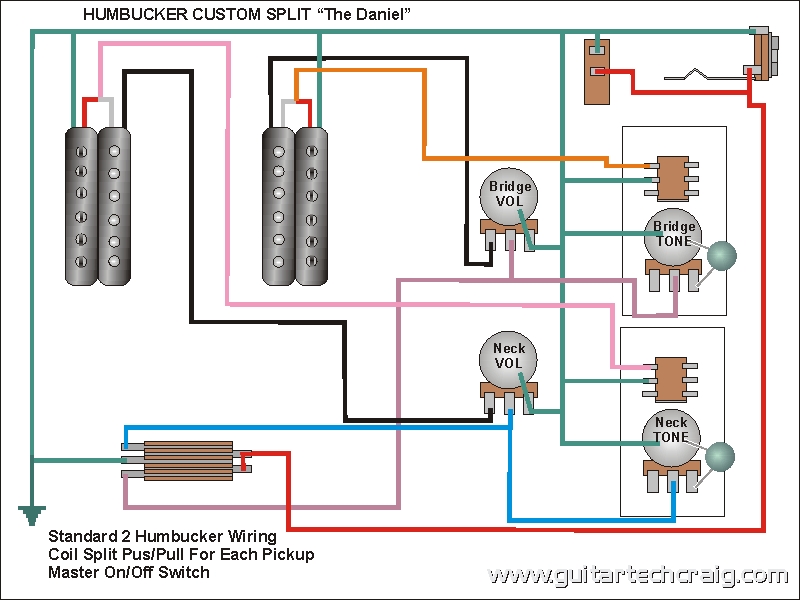

2 Vol 2 Tone, 3-Way Switch, 2 Coil Tap Push/Pull, Master On/Off VIEW DIAGRAM --
2 Vol 1 Tone, 5-Way SuperSwitch for Custom Coil Selection VIEW DIAGRAM --

  3 SINGLE COIL PICKUPS
DESCRIPTION VIEW IT MORE INFO
1 Vol, 2 Tone, 5-Way Selector Switch "Stock Strat" VIEW DIAGRAM --
1 Vol w/Push/Pull, 1 Tone, 1 BLEND, 5-Way Selector Switch "MEGA STRAT" REVISED 8/19/2014 VIEW DIAGRAM Test Values
1 Vol w/Push/Pull, 1 Tone, 1 BLEND, 5-Way Selector Switch "MEGA STRAT 2" NEW 8/2/2014 features series in and out of phase tones VIEW DIAGRAM --
Budget Import 5-Way Switch, 1 Vol, 1 Tone, 1 BLEND "BUDGET MEGA STRAT" VIEW DIAGRAM --
Stock Strat plus push/pull or toggle adds rhythm/lead and rhythm/middle/lead combos "Strat Lover's" VIEW DIAGRAM --
Brian May's Red Special VIEW DIAGRAM --

  HUMBUCKING AND SINGLE COIL PICKUP COMBINATIONS
DESCRIPTION VIEW IT MORE INFO
2 Humbuckers, 1 Single Coil, 1 Vol, 1 Tone, 2 3-Way Selector Switches VIEW DIAGRAM --
Lead Humbucker, Rhythm Single Coil, 1 Vol, 1 Tone, 5-way selector Switch VIEW DIAGRAM --
2 Humbuckers, 1 Single Coil, 1 Vol, 1 Tone, 1 BLEND, 5-Way Selector Switch VIEW DIAGRAM --
Lead Humbucker, 2 Single Coils, 5-Way Switch, Double-Pole Switch "Deluxe Strat" VIEW DIAGRAM --
Standard 1 Humbucker 2 Single Coil Wiring, 5-Way, Master Vol and Tone VIEW DIAGRAM --

  MISCELLANEOUS SWITCHING
DESCRIPTION VIEW IT MORE INFO
Series / Parallel Coil Switching for Humbucker VIEW DIAGRAM --
Humbucker Phase Switch, Coil Tap, Series/Parallel switching VIEW DIAGRAM --
